DIY Floor Speakers
Designer:
Tom D
Project Category:
Bookshelf Speakers
Project Level:
Intermediate
Project Time:
20+ Hours
Project Cost:
$100 – $500
Project Description:

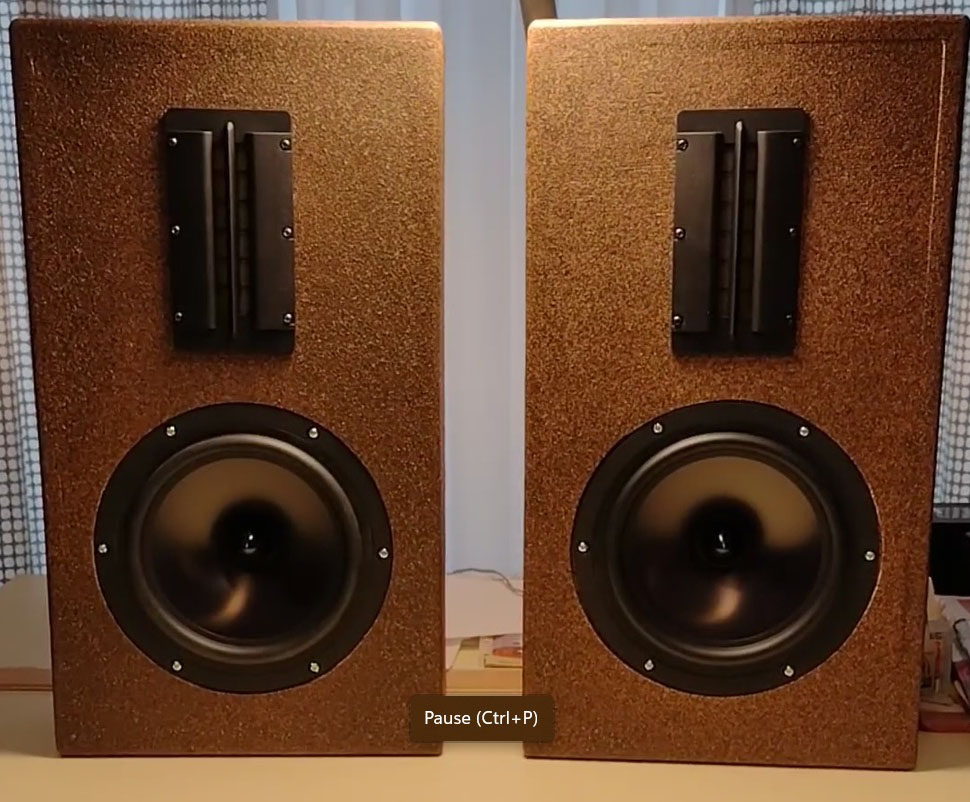

A set of 2-way floor speakers using Dayton Audio components in a custom built cabinet made from cabinet grade 3/4 plywood.
Design Goals:
Clear sound definition from my system using my CD player or streamer and fits in my office environment.

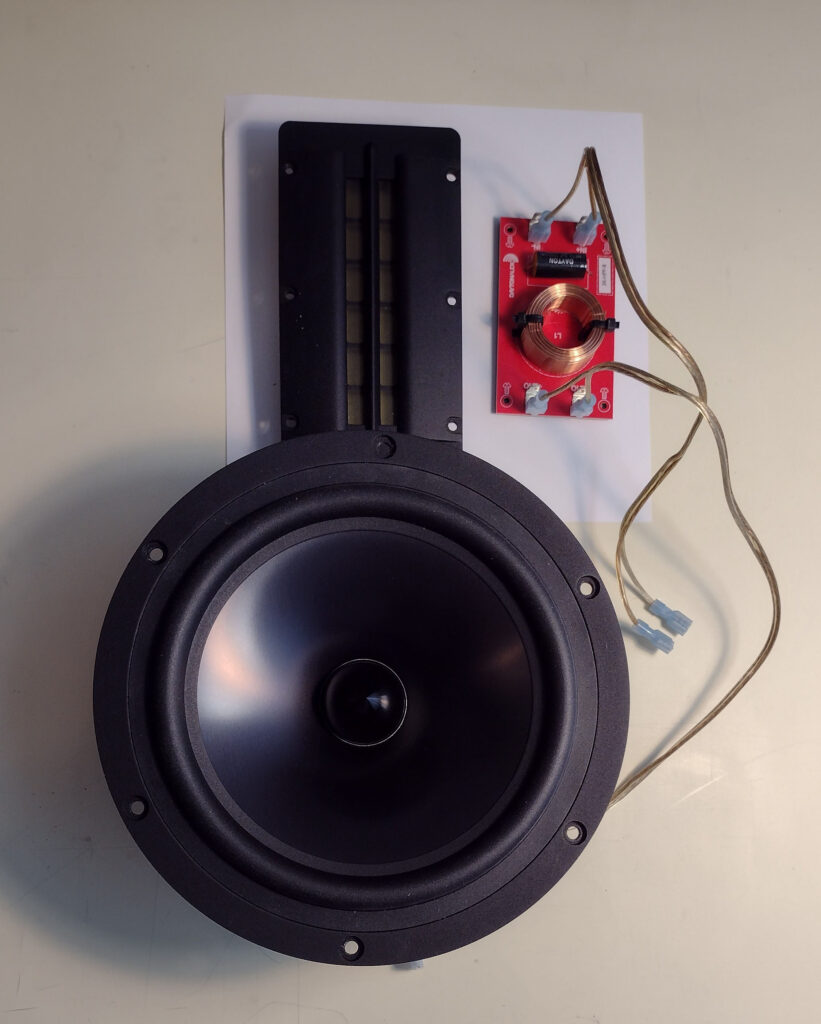

Driver Selection:
#295-356 Dayton Audio RS225-8 8″ Reference Woofer
#275-085 Dayton Audio PT2C-8 Planar Tweeter

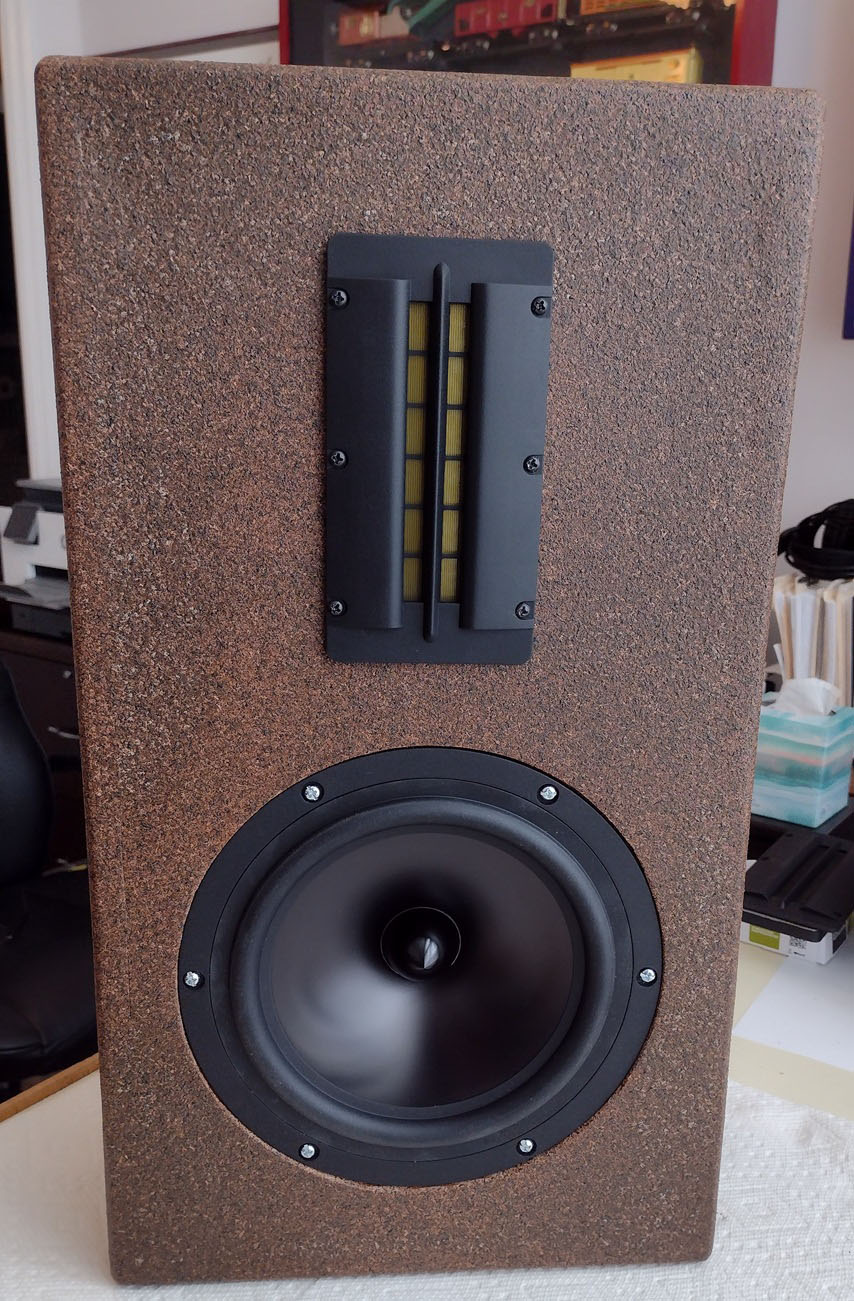

Enclosure Design:
Two-way driver design using 3/4″ Cabinet grade plywood, sealed construction with approximately .55 ft³ volume and 3/4 depth baffle-stiffener above woofer. Crossover mounted in rear of bottom with hot melt.
Enclosure Assembly:

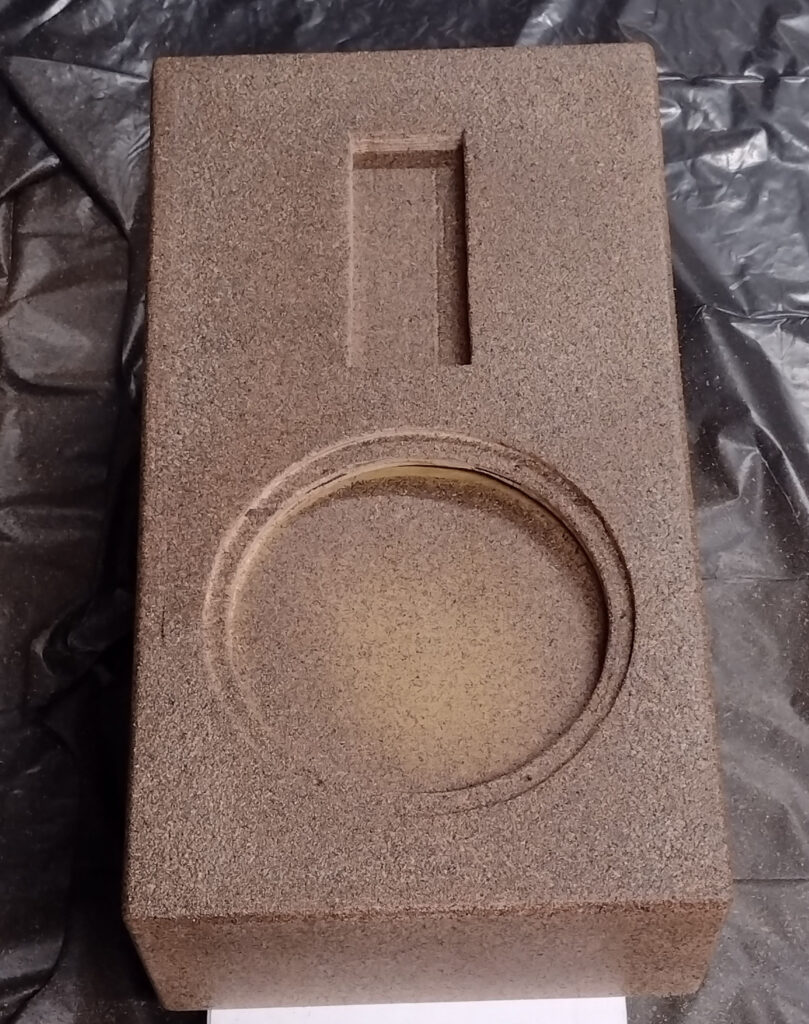

Glue up structure with Gorilla wood glue & clamps. Back is screwed on and sealed using wood screws for access. 2″ Fiberglass batting around woofer and below tweeter. Woofer is mounted with machine screws-nuts and planar tweeter is mounted with small head wood screws. Cabinets finished with Rustoleum, Stone, Mineral Brown spray paint.
Crossover Design:
#260-1882 Dayton Audio 3k-HPF-8 High Pass Speaker Crossover 3000Hz 12dB/Octave
Conclusion:
I’ve been playing these speakers for many hours since building them and they sound better each hour as they break in. I’m very pleased with their dynamic range highs and bass. I used to build speaker cabinets in the 1970’s and ’80’s for my systems and drivers have come a long way since then!
Tips & Tricks:
Don’t be afraid to experiment! The Rustoleum Mineral Brown finish gives a professional look and nice background to the Dayton drivers. It takes a little practice before spraying ti on the finished cabinets though.
About the Designer:
Retired product designer getting back to building things for fun. I used to build speakers many years ago when companies like Lafayette Electronics and Olsen were the local electronic products and parts stores near me. I like to do research before I start a project and then develop a plan and drawings. I gave my vinyl and turntable to my son as I got more into CD’s and streaming. Space for sound systems has gotten smaller over the years and the speakers described here fit the bill perfectly for me.
Project Parts List:
| Part# | Description | Qty. |
| 295-356 | Dayton Audio RS225-8 8″ Reference Woofer – 8 Ohm | 2 |
| 275-085 | Dayton Audio PT2C-8 Planar Tweeter – 8 Ohm | 2 |
| 260-1882 | Dayton Audio3k-HPF-8 High Pass Speaker Crossover 3000Hz 12dB/Octave – 8 Ohm | 2 |
| 3/4 Cabinet Grade plywood, 48″ x 48″ | ||
| Rustoleum Stone, Mineral Brown color | ||
| #6 Wood screws | ||
| Gorilla Wood Glue | ||
| #6 x 1 1/4″ machine screws, washers and nuts | ||
| 2″ Fiberglass batting (Insulation) | ||
| Female disconnects, .250 Tab, size 16-14 | ||
| 18Ga speaker wire | ||
| Hot Melt |
